ODM Paramerter Testing
Stitching images in infrared and red
I've been attempting to get better stiches in Open Drone Map, and can't seem to pin down exactly what settings might provide the best results. So, I have thrown some of the output folders in an S3 bucket, along with the settings I used. The missions were shot with Mapir Survey 2 cameras in 16 megapixel mode.
If you have any ideas, drop me a line
August 20 data
| Name | Settings Used | S3 Location | Thumbnail |
|---|---|---|---|

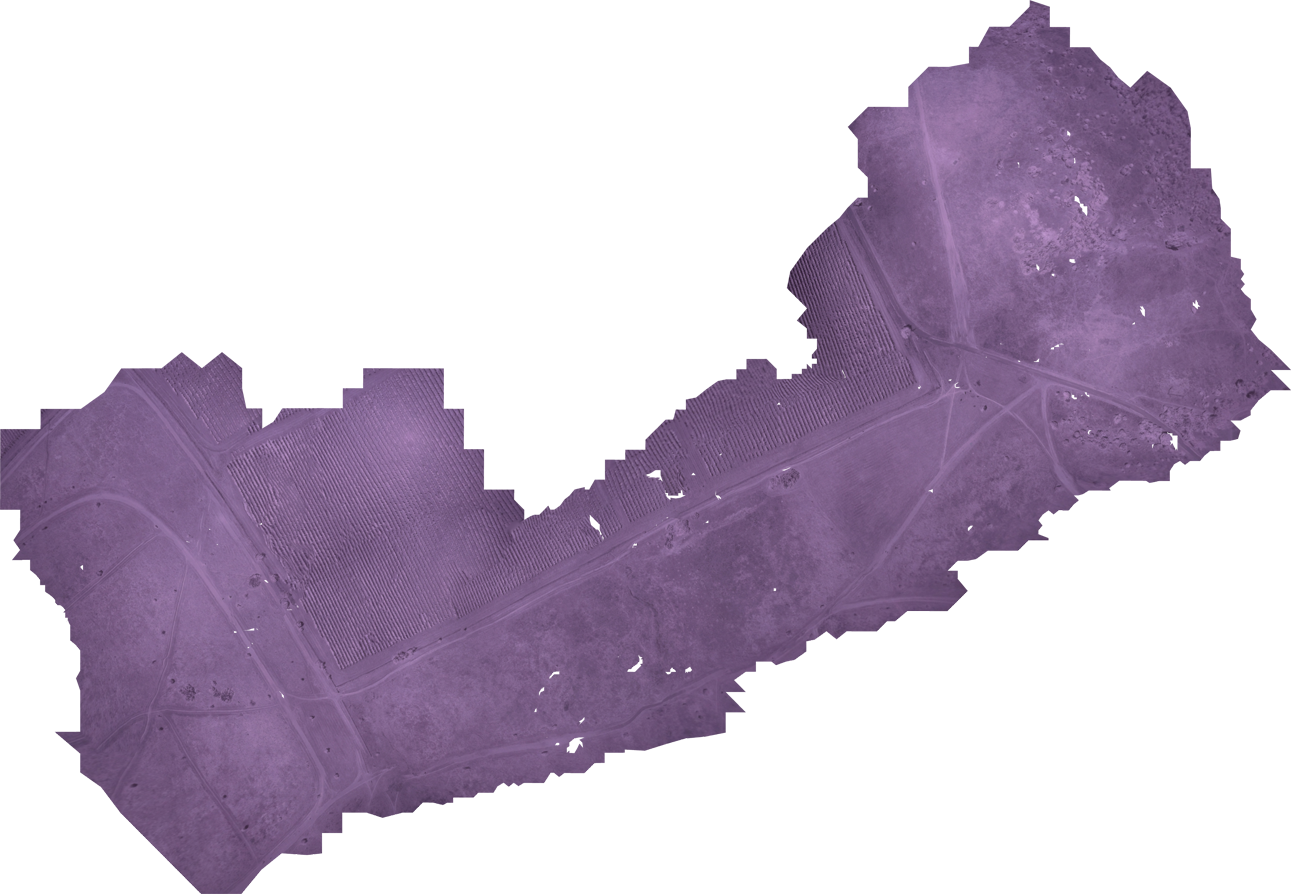

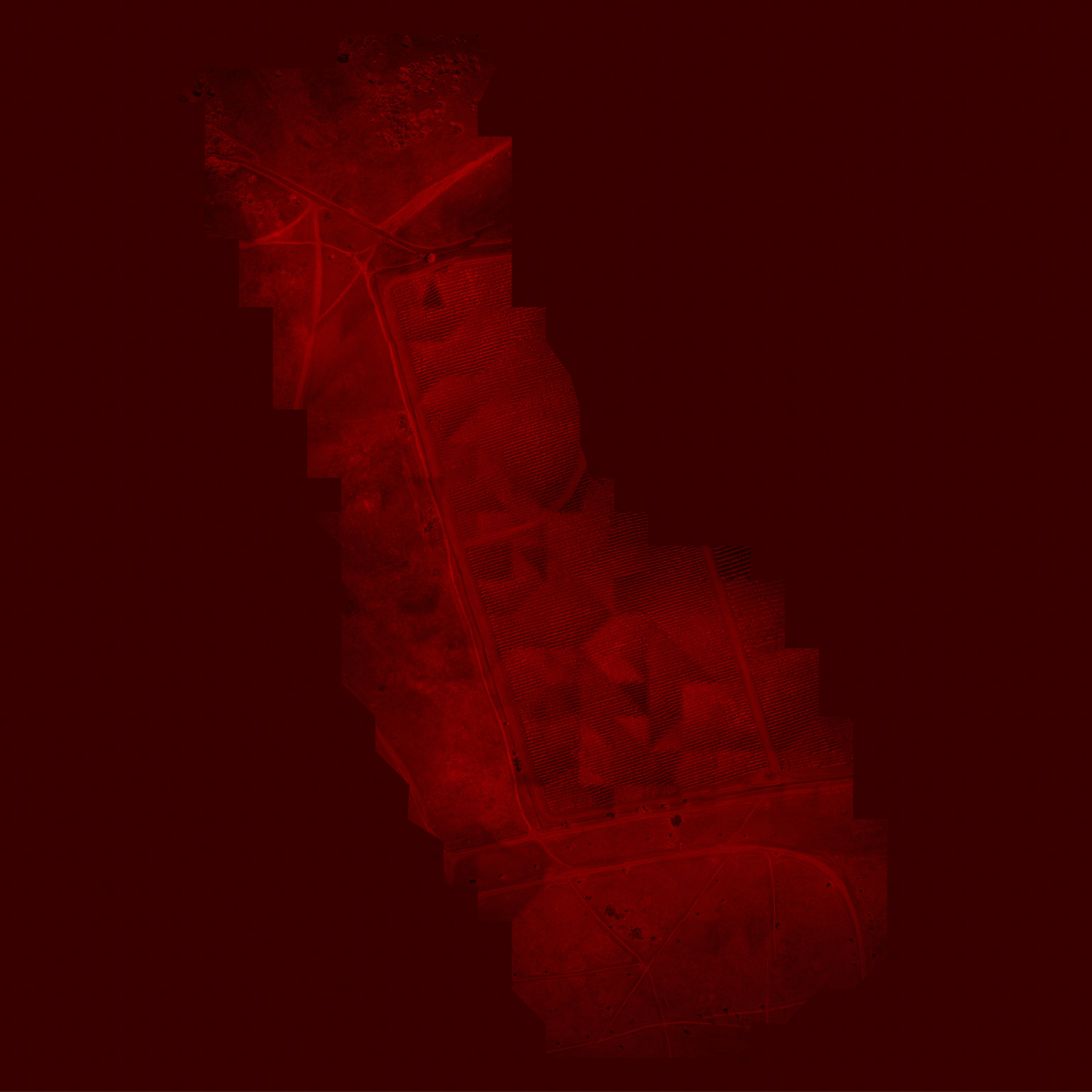

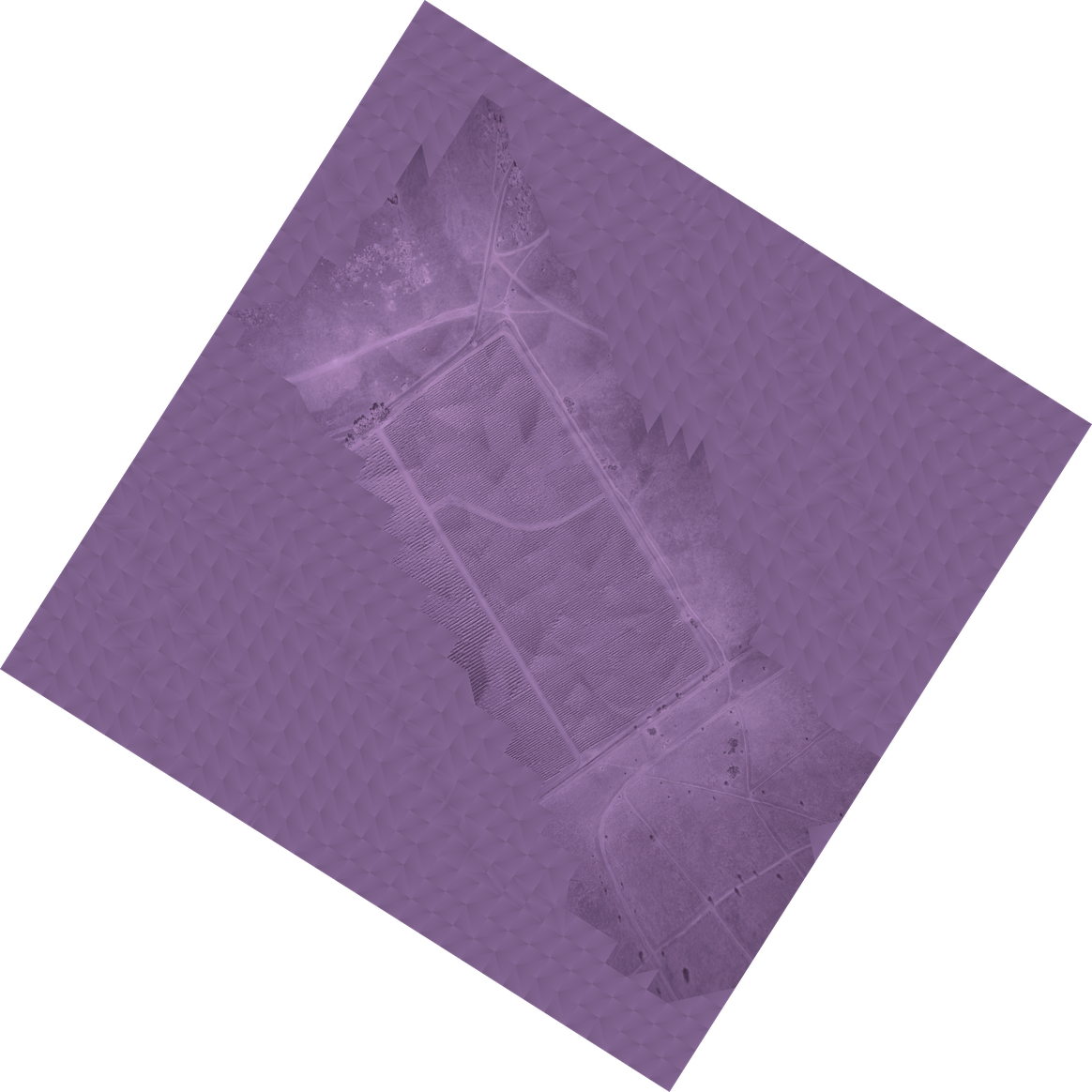

| 170820_IR_00 | mesh-octree-depth: 5, min-num-features: 15000, resize-to: 2000, texturing-keep-unseen-faces: true, force-ccd: 6.17472, mesh-size: 200000, verbose: true, opensfm-processes: 8, texturing-skip-global-seam-leveling: true, matcher-neighbors: 12 |
S3Bucket |  |

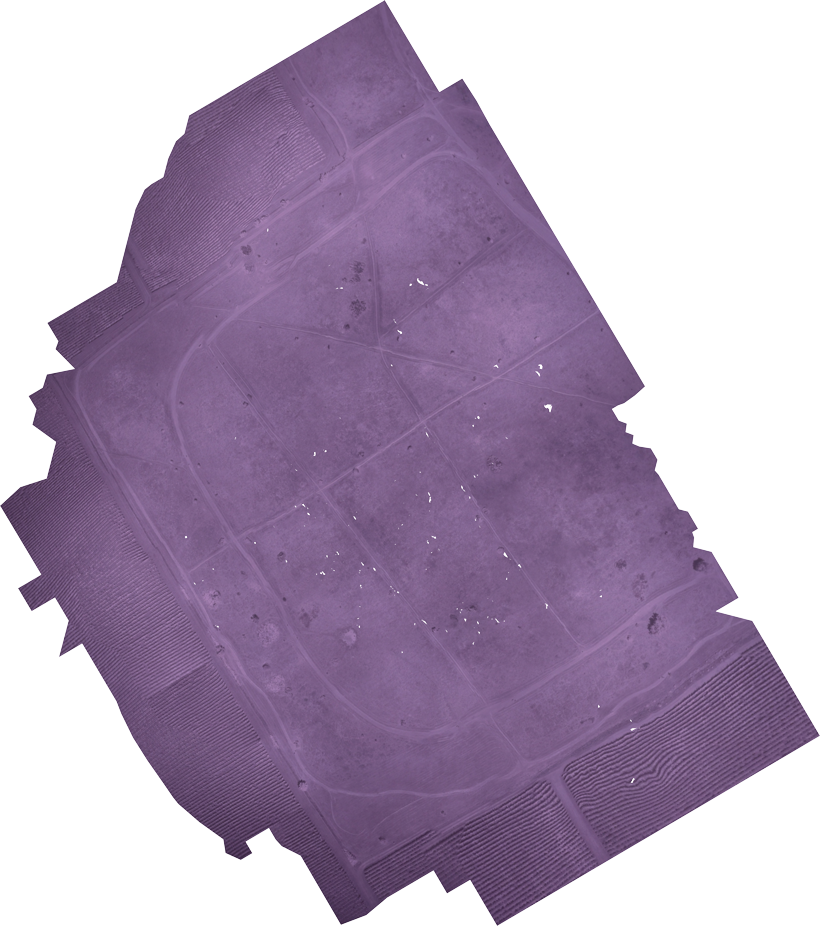

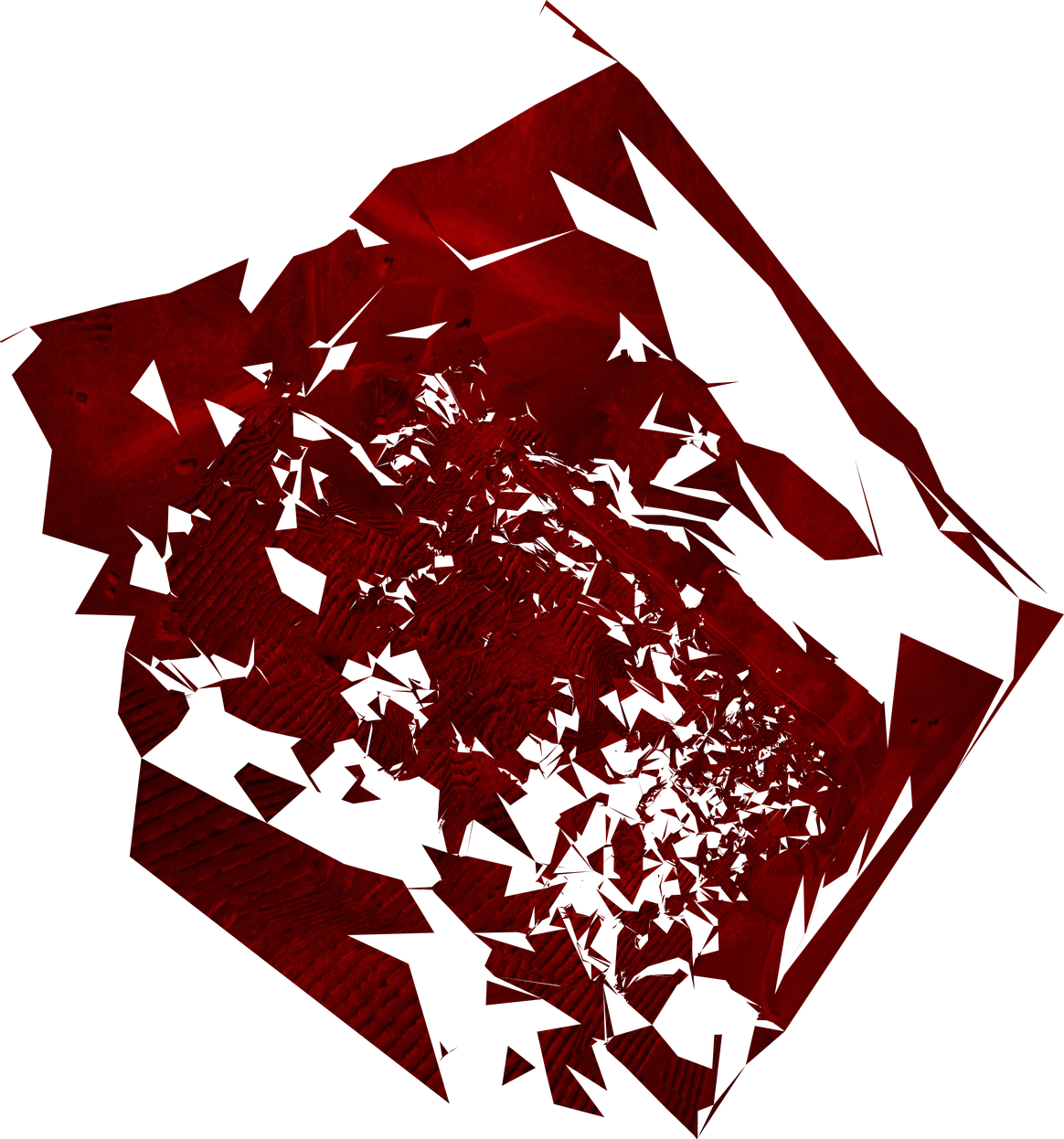

| 170820_IR_01 | mesh-octree-depth: 5, min-num-features: 10000, resize-to: 2000, texturing-keep-unseen-faces: true, force-ccd: 6.17472, mesh-size: 200000, verbose: true, opensfm-processes: 8, texturing-skip-global-seam-leveling: true, matcher-neighbors: 12 |
S3Bucket |  |

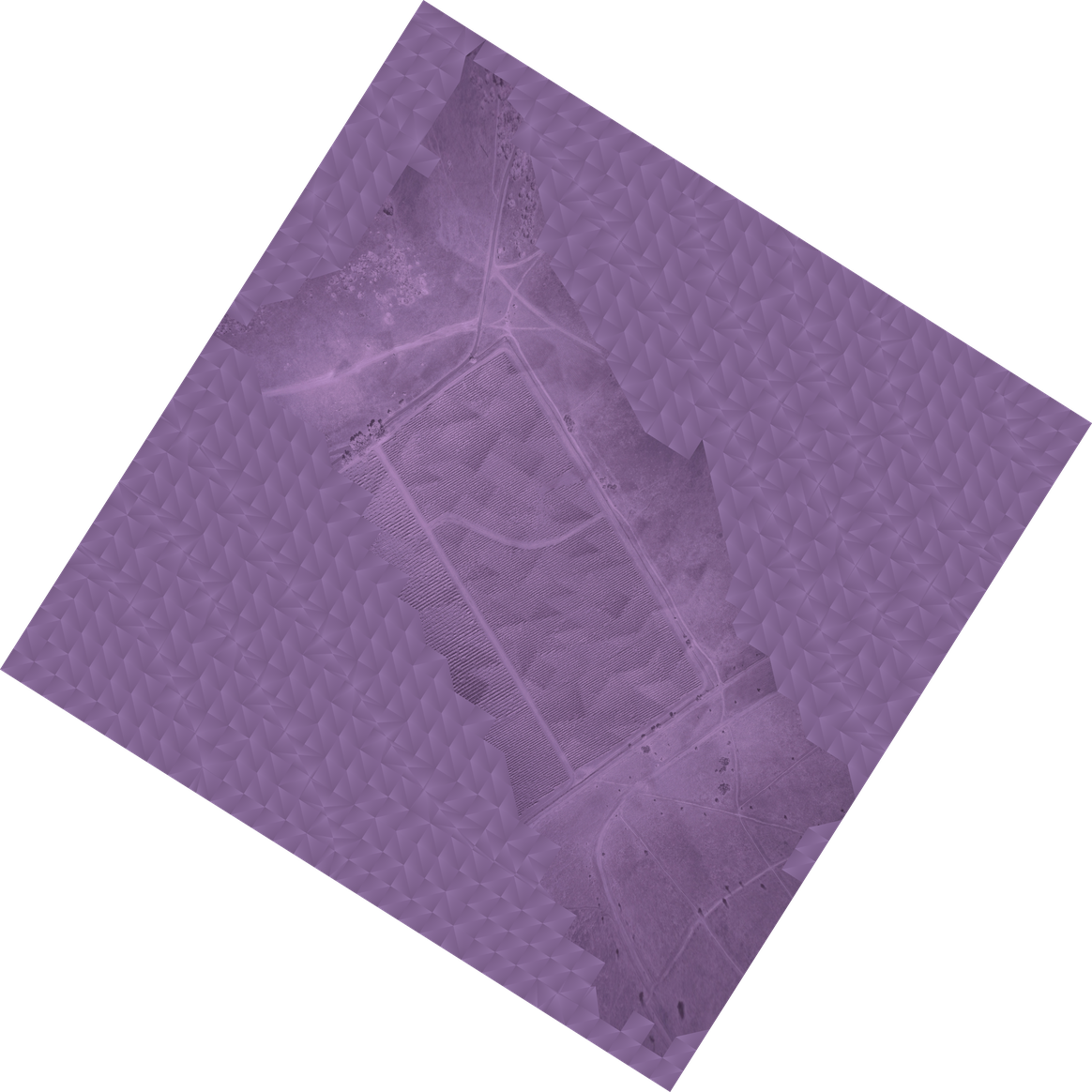

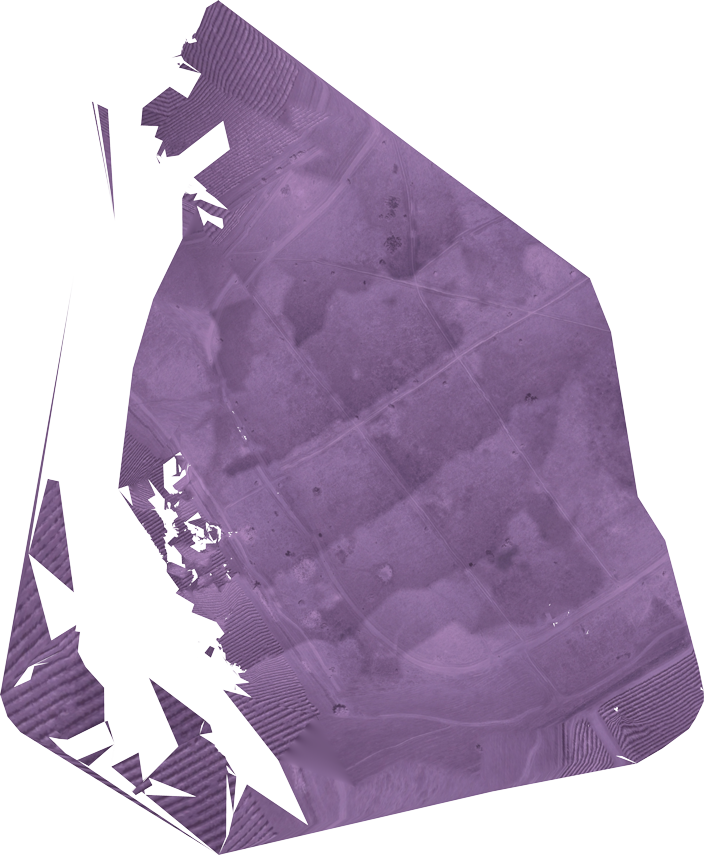

| 170820_IR_02 | mesh-octree-depth: 5, min-num-features: 10000, resize-to: 2000, texturing-keep-unseen-faces: true, force-ccd: 6.17472, mesh-size: 200000, verbose: true, opensfm-processes: 8, texturing-skip-global-seam-leveling: true, matcher-neighbors: 12 |
S3Bucket |  |

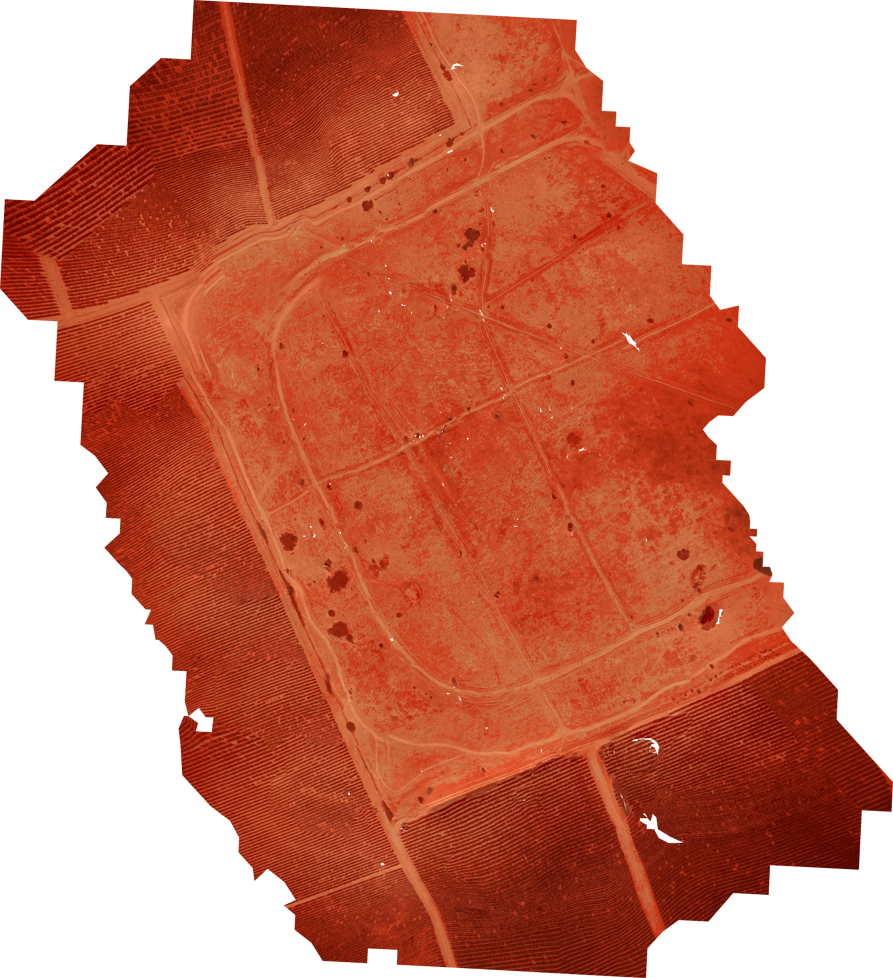

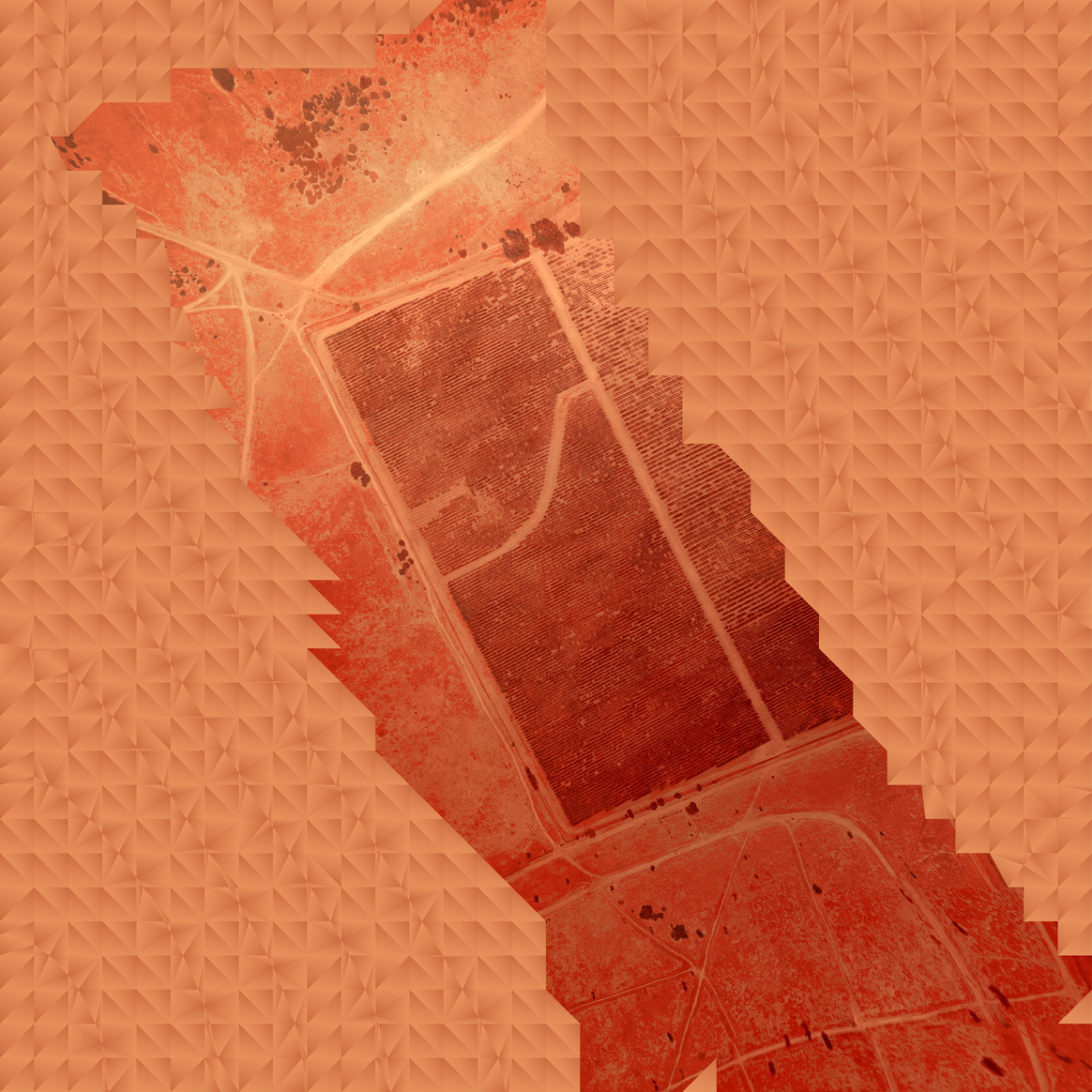

| 170820_Red_01 | mesh-octree-depth: 5, min-num-features: 10000, resize-to: 2000, texturing-keep-unseen-faces: true, force-ccd: 6.17472, verbose: true, opensfm-processes: 8, matcher-neighbors: 12 |
S3Bucket |  |

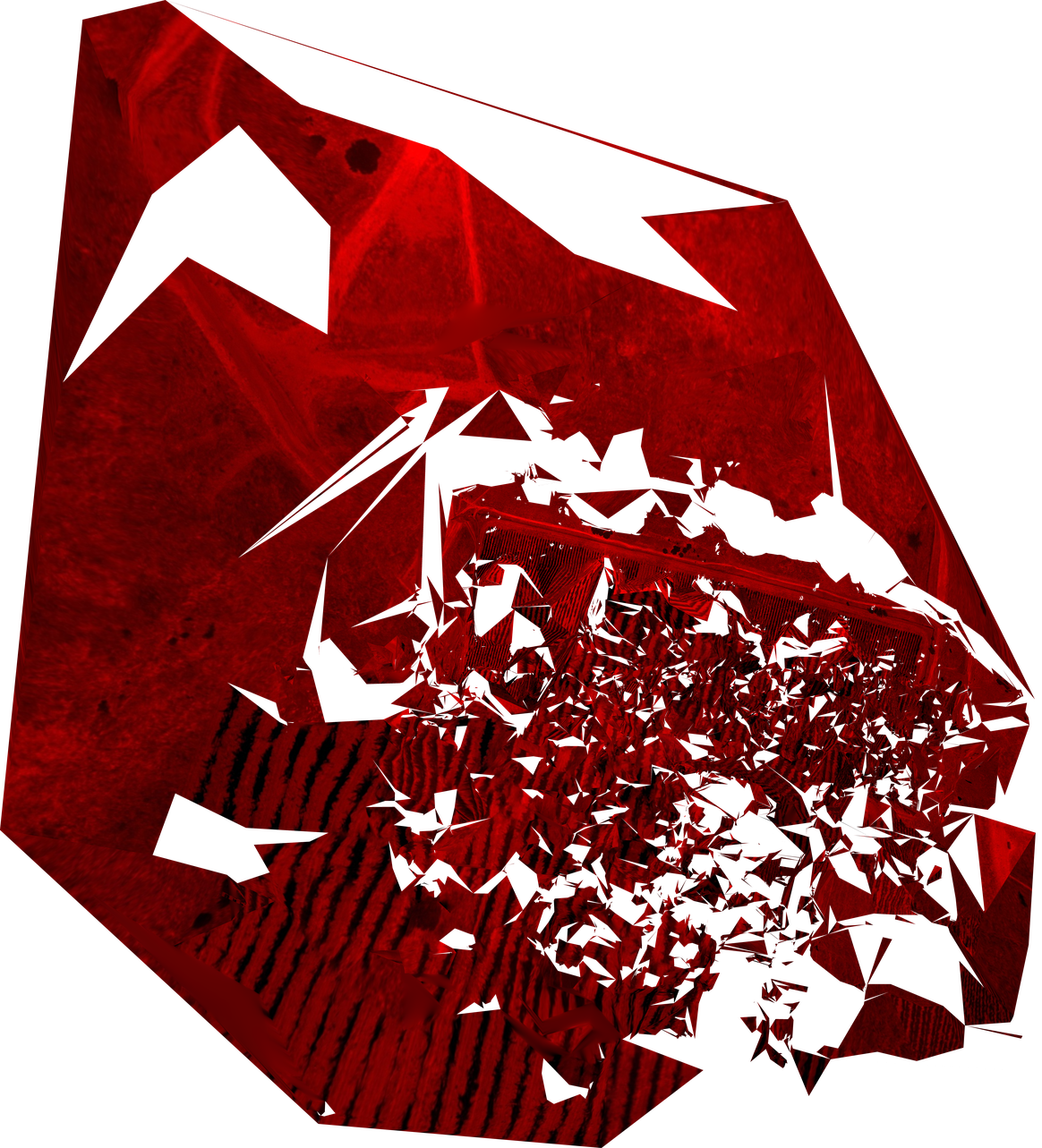

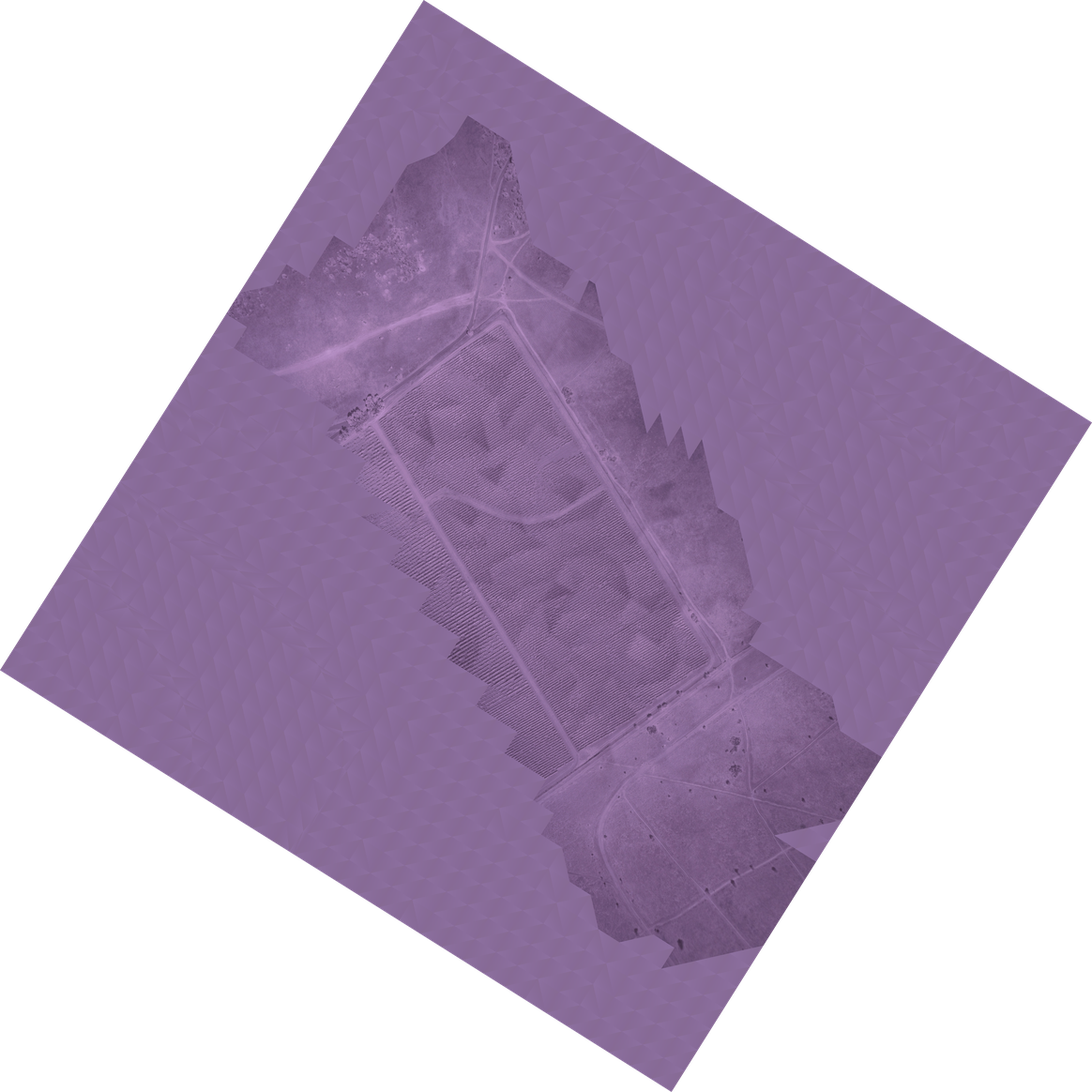

| 170820_Red_02 | mesh-octree-depth: 5, min-num-features: 8000, resize-to: 2000, texturing-keep-unseen-faces: true, force-ccd: 6.17472, verbose: true, opensfm-processes: 8, matcher-neighbors: 12 |
S3Bucket |  |
August 6 data
| Name | Settings Used | S3 Location | Thumbnail |
|---|---|---|---|

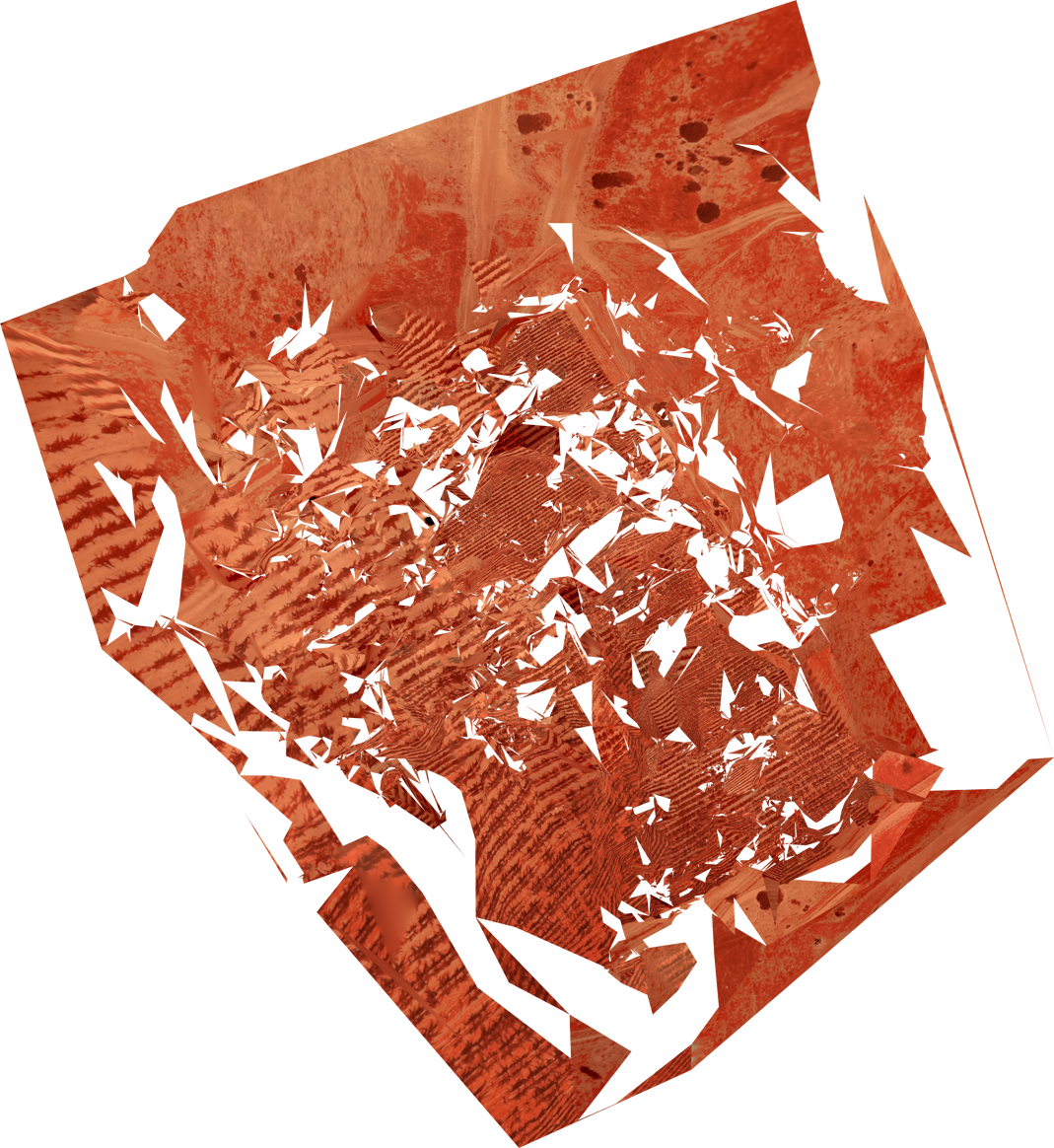

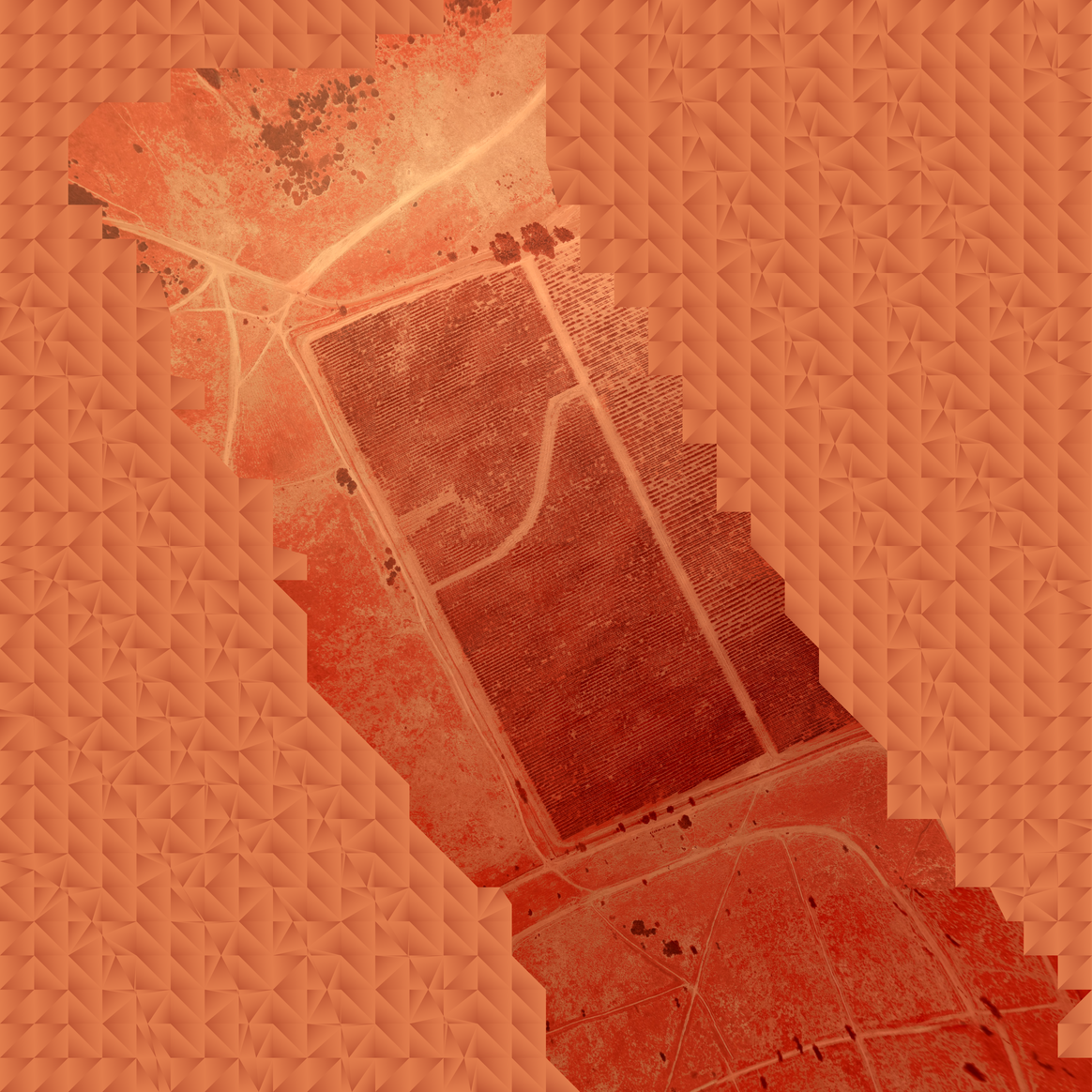

| 170806_19 IR | mesh-octree-depth: 5, min-num-features: 10000, resize-to: 2000, texturing-keep-unseen-faces: true, force-ccd: 6.17472, mesh-size: 20000, verbose: true, opensfm-processes: 6, texturing-skip-global-seam-leveling: true, matcher-neighbors: 12 |
S3Bucket |  |

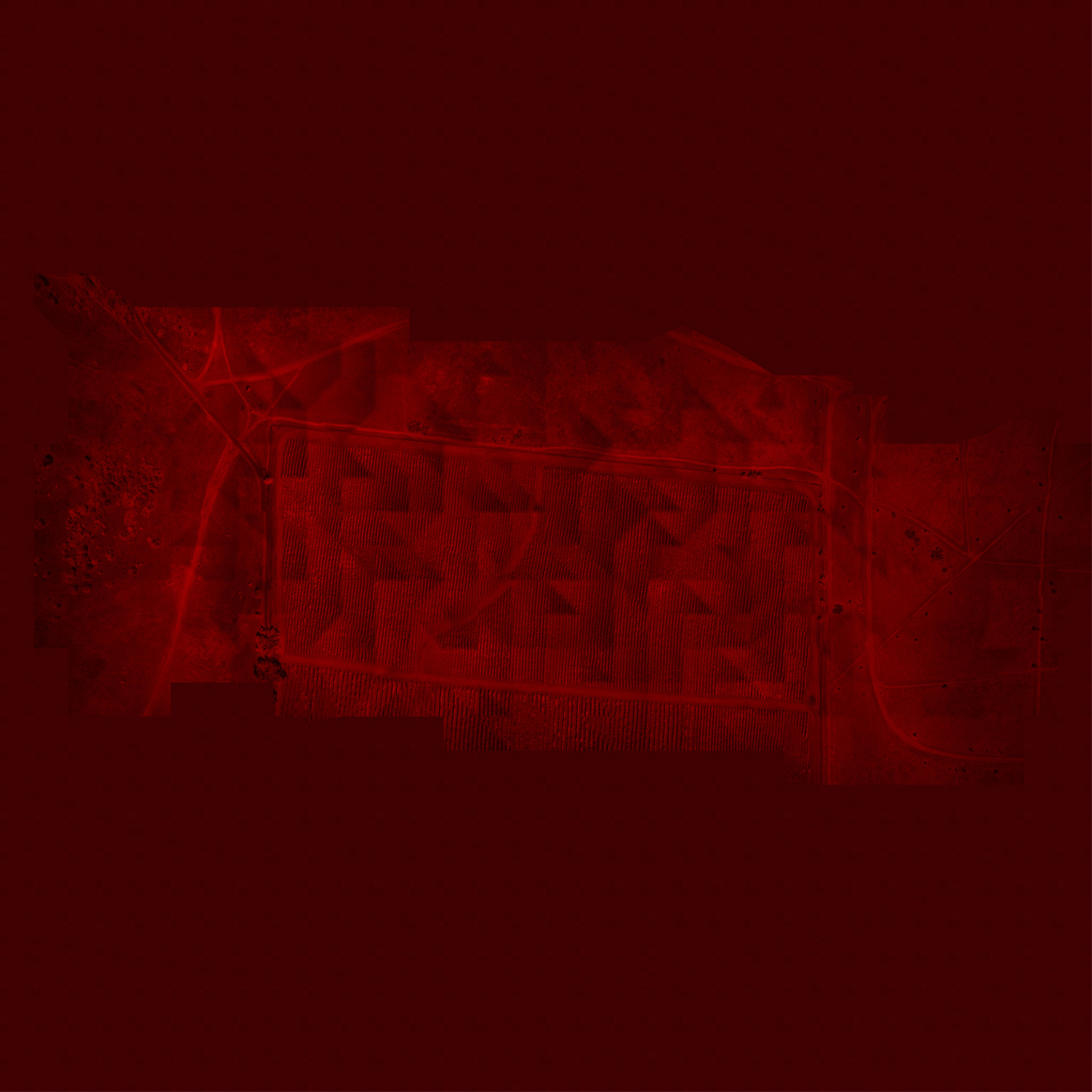

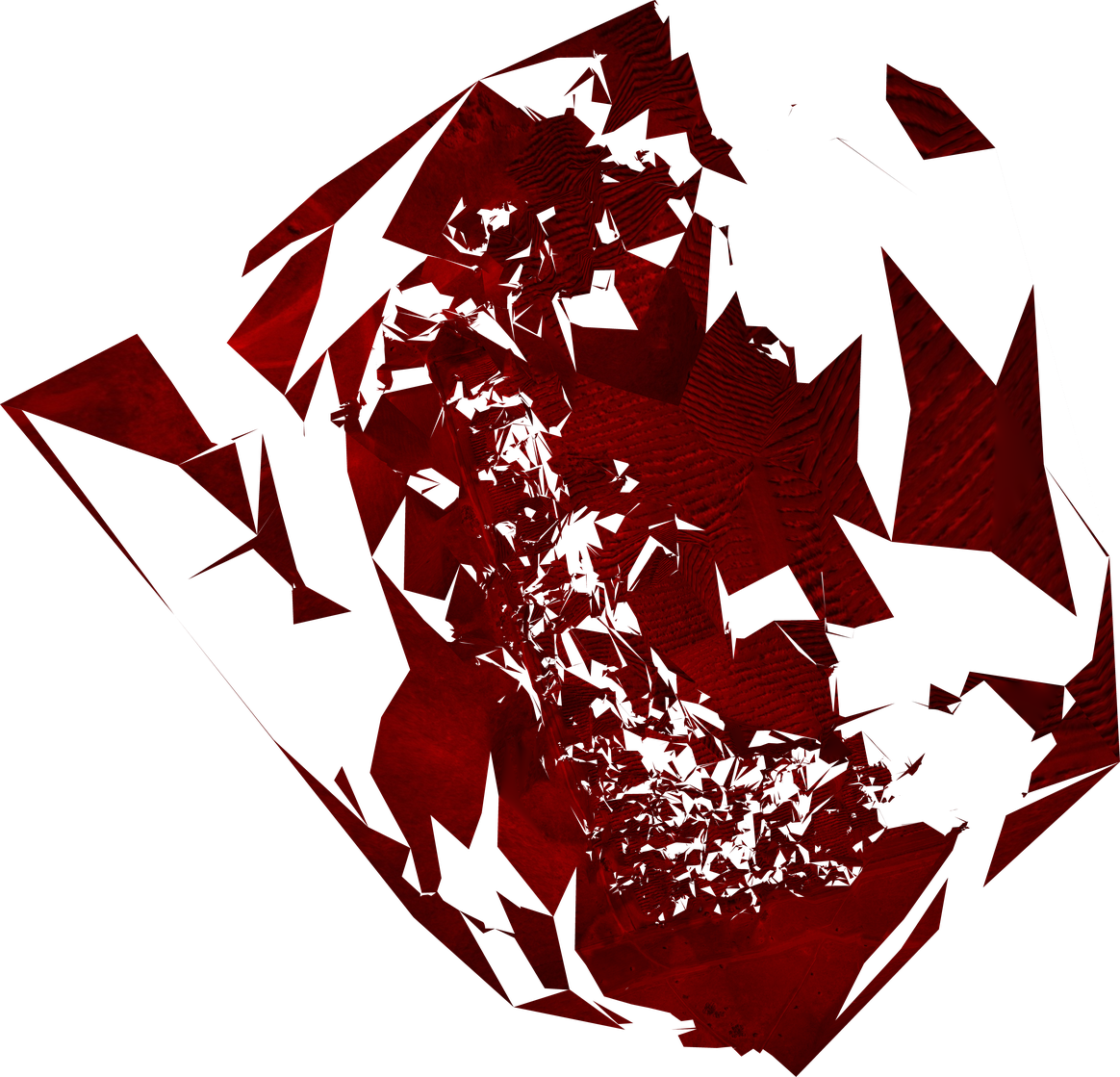

| 170806_18 IR | mesh-octree-depth: 5, min-num-features: 4000, resize-to: 2000, texturing-keep-unseen-faces: true, force-ccd: 6.17472, mesh-size: 20000, verbose: true, opensfm-processes: 8, texturing-skip-global-seam-leveling: true, matcher-neighbors: 12 |
S3Bucket |  |

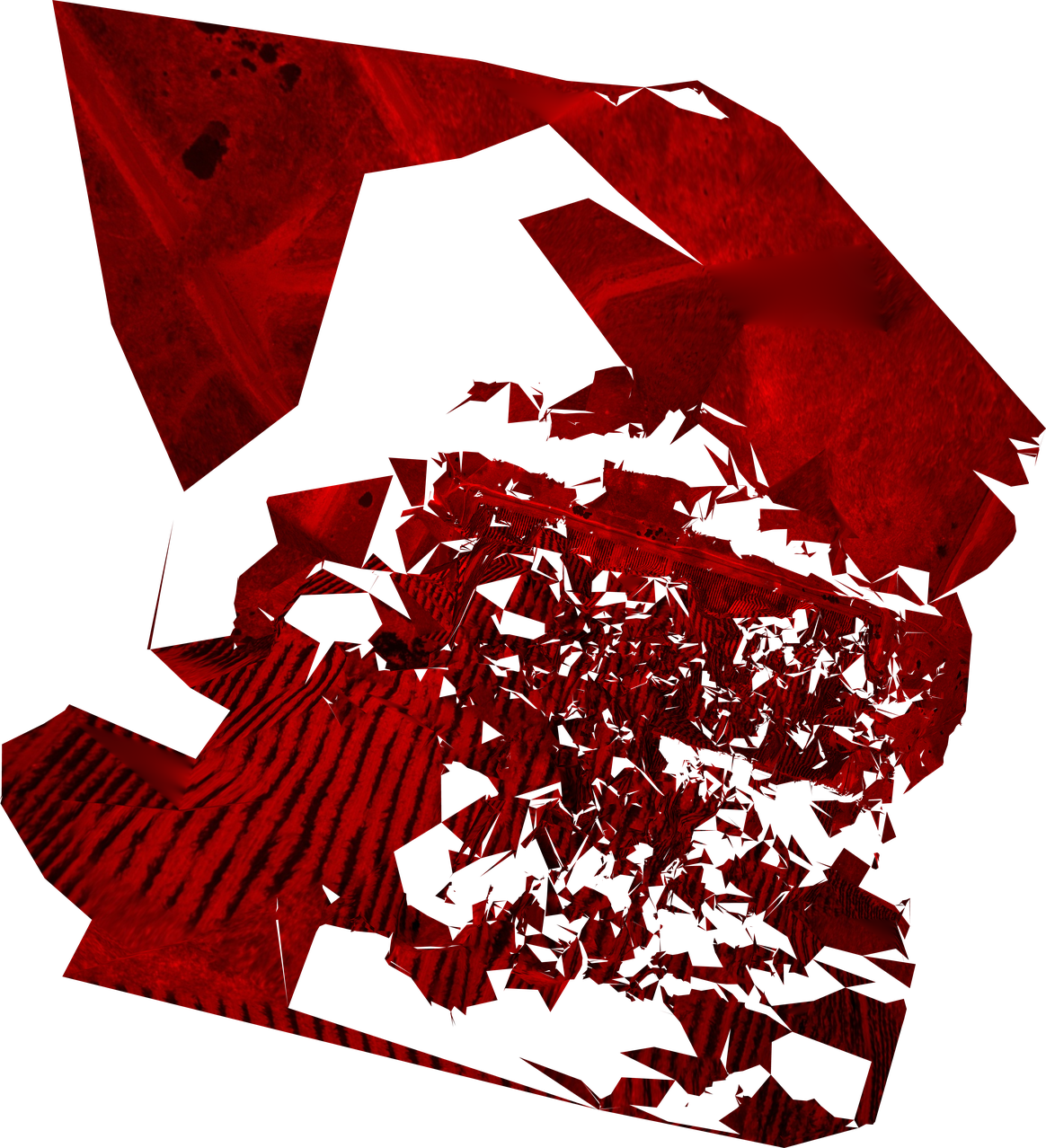

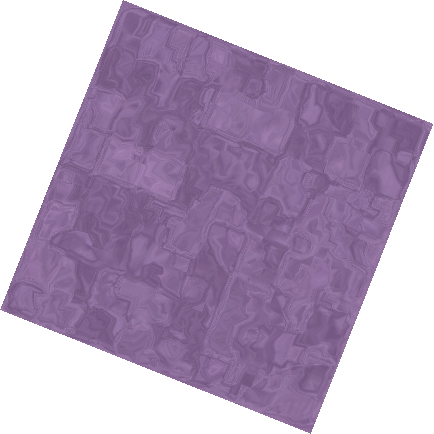

| 170806_16 (Red) | mesh-octree-depth: 5, min-num-features: 15000, resize-to: 2000, texturing-keep-unseen-faces: true, force-ccd: 6.17472, mesh-size: 20000, verbose: true, dsm: true, opensfm-processes: 2, matcher-neighbors: 12 |
S3Bucket |  |
| 170806_12 (Red) | Options: min-num-features: 8000, force-ccd: 6.17472, orthophoto-no-tiled: true, build-overviews: true, verbose: true, use-exif: true, mesh-wlop-iterations: 45, mesh-remove-outliers: 4, use-25dmesh: true, dem: true, use-pmvs: true |
S3Bucket |  |
| 170806_13 (Red) | Options: min-num-features: 6000, force-ccd: 6.17472, build-overviews: true, verbose: true, use-exif: true, mesh-wlop-iterations: 45, mesh-remove-outliers: 4, use-25dmesh: true, dem: true, texturing-skip-global-seam-leveling: true, use-pmvs: true |
S3Bucket |  |
| 170806_14 (IR) | Options: min-num-features: 6000, force-ccd: 6.1742, build-overviews: true, verbose: true, use-exif: true, mesh-wlop-iterations: 45, mesh-remove-outliers: 4, use-25dmesh: true, dem: true, texturing-skip-global-seam-leveling: true, use-pmvs: true |
S3Bucket |  |
| 170806_15 (IR) | Options: min-num-features: 8000, force-ccd: 6.17472, build-overviews: true, verbose: true, use-exif: true, mesh-wlop-iterations: 45, mesh-remove-outliers: 4, use-25dmesh: true, dem: true, texturing-skip-global-seam-leveling: true, use-pmvs: true |
S3Bucket |  |
July 4 data
| Name | Settings Used | S3 Location | Thumbnail | |
|---|---|---|---|---|
| sevenfourparkir | force-ccd: 6.17472, orthophoto-no-tiled: true, build-overviews: true, verbose: true, use-exif: true, use-25dmesh: true, dem: true, texturing-skip-global-seam-leveling: true, pmvs-wsize: 9, use-pmvs: true |
S3Bucket |  |
|
| sevenfourparkred | force-ccd: 6.17472, build-overviews: true, verbose: true, use-exif: true, use-25dmesh: true, dem: true, use-pmvs: true |
S3Bucket |  |
|
| sevenfourvineyardred | force-ccd: 6.17472, build-overviews: true, verbose: true, use-exif: true, use-25dmesh: true, dem: true, pmvs-wsize: 9, use-pmvs: true |
S3Bucket |  |
|
| sevenfourparkred2 | Default |
S3Bucket |  |
|
| sevenfourparkir3 | Default |
S3Bucket |  |
|
| sevenfourvineyardir3 | min-num-features: 6000, pmvs-threshold: 0.8, force-ccd: 6.17472, verbose: true, use-exif: true, pmvs-wsize: 7 |
S3Bucket |  |
|
| sevenfourvineyardir4 | mesh-octree-depth: 12, min-num-features: 8000, force-focal: 3.97, pmvs-threshold: 0.85, force-ccd: 6.17472, mesh-size: 100000000, verbose: true, pmvs-csize: 8, use-exif: true, texturing-skip-global-seam-leveling: true, pmvs-wsize: 7, use-pmvs: true |
S3Bucket |  |
